Vacuum Fluorescent Displays (VFD)

A vacuum fluorescent display, or VFD, is a type of display that produces bright, usually blue-green characters and is a close relative of the vacuum tube. Like a tube, it works inside an evacuated glass envelope and uses thermionic emission: a heated filament releases electrons that are accelerated toward anodes coated with a phosphor. Where the electrons strike the phosphor, it fluoresces and glows, forming the visible segments or dots of the display.

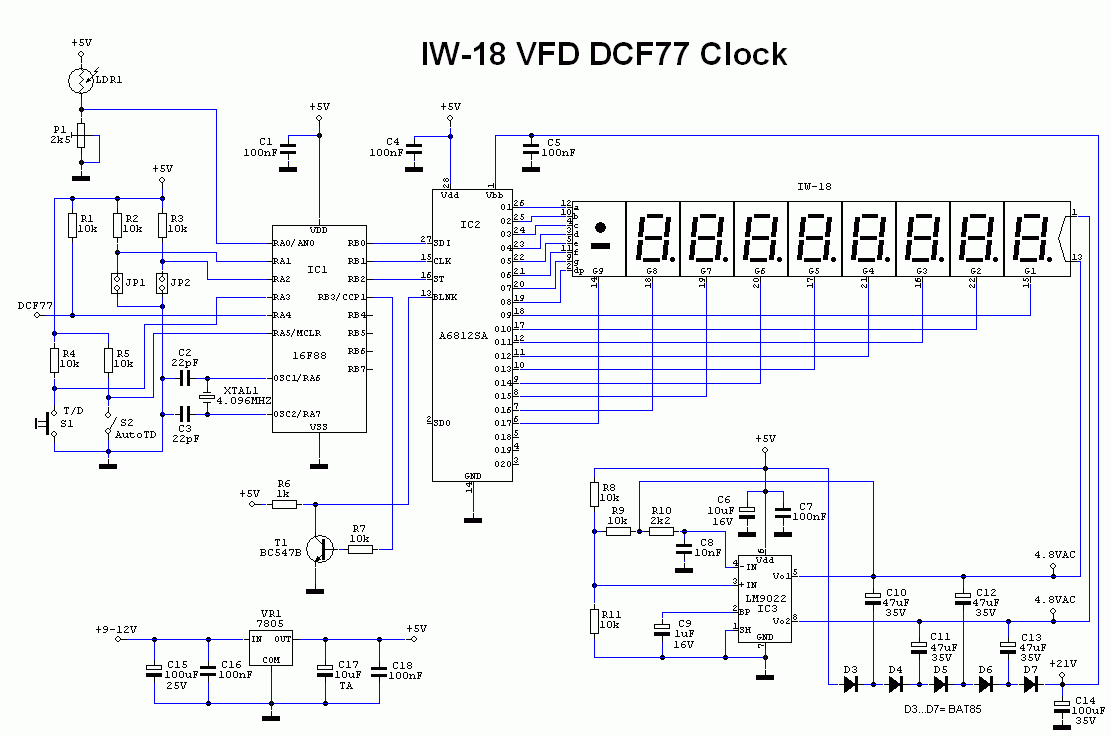

Each display has a fine filament stretched across the front, a grid that controls which areas receive electrons, and patterned phosphor-coated anodes shaped as segments, characters or symbols. By switching grid and anode voltages, the controlling circuit lights only the desired elements. VFDs are emissive, meaning they generate their own light rather than relying on a backlight, so they are bright and readable from wide angles and in low light.

From the 1970s onward, VFDs became common in consumer electronics, appearing in calculators, clocks, video and audio equipment, microwave ovens and car dashboards. They were valued for their clarity and the appealing glow of their characters. Liquid-crystal and LED displays have since taken over many of these roles because they use less power and can be made larger and in more colours, but VFDs are still used where their brightness and distinctive look are wanted, and they remain popular in audio gear and clocks.

Frequently asked questions

How does a vacuum fluorescent display produce light?

A heated filament emits electrons that strike phosphor-coated anodes inside an evacuated envelope. The phosphor fluoresces where electrons hit it, lighting the chosen segments.

How is a VFD related to a vacuum tube?

It uses the same principles as a tube: a vacuum, a heated cathode emitting electrons, and a grid controlling their flow. Instead of amplifying, it lights phosphors to form a display.

Where are VFDs commonly found?

They have been used in calculators, clocks, audio and video equipment, microwave ovens and car dashboards, valued for their brightness and wide viewing angle.
