Automotive Animations and Engine Simulations

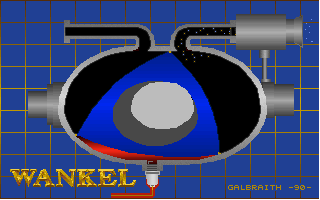

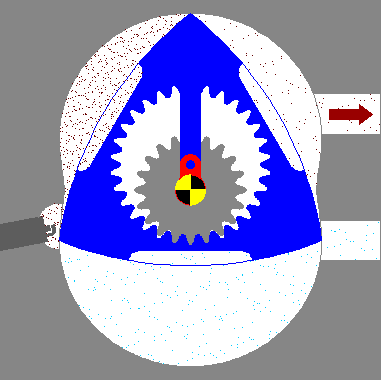

Animations and interactive simulations of automotive systems make visible the rapid, hidden processes inside an engine, which are otherwise difficult to grasp from a static diagram. By showing pistons, valves and gases in motion, they help explain how a car engine turns the chemical energy of fuel into mechanical work, and they let learners vary parameters and watch the effect.

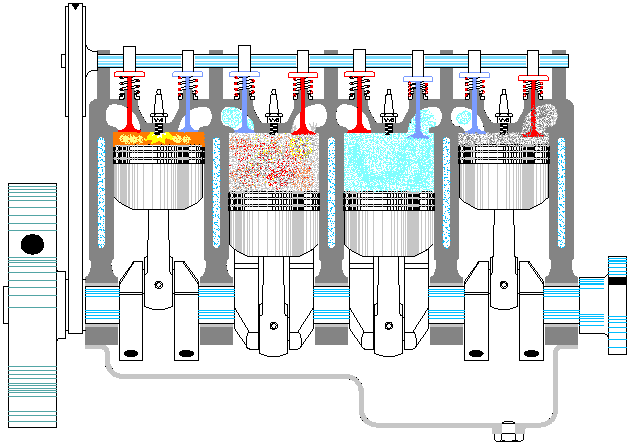

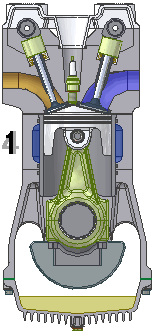

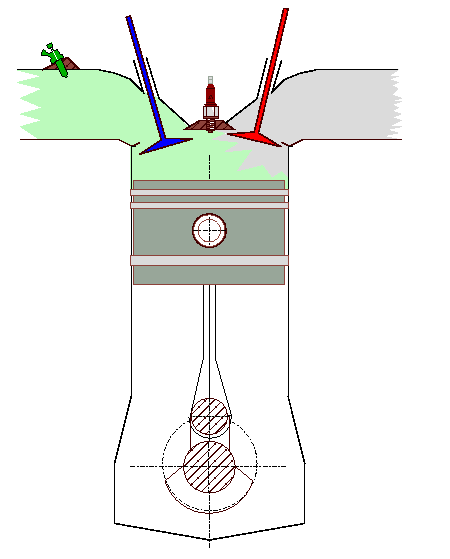

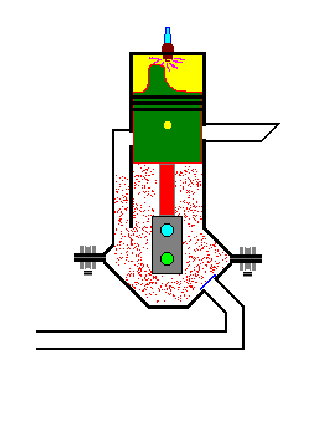

A central subject is the thermodynamic cycle, the repeating sequence of changes in pressure, volume and temperature that the working gas undergoes. The Otto cycle describes the idealised operation of a spark-ignition petrol engine, in which a fuel-air mixture is drawn in, compressed, ignited by a spark, and expanded to do work before the burnt gas is expelled. Most such engines complete this in four piston strokes: intake, compression, power and exhaust. The Diesel cycle represents the compression-ignition engine, where air is compressed so strongly that injected fuel ignites on its own, without a spark.

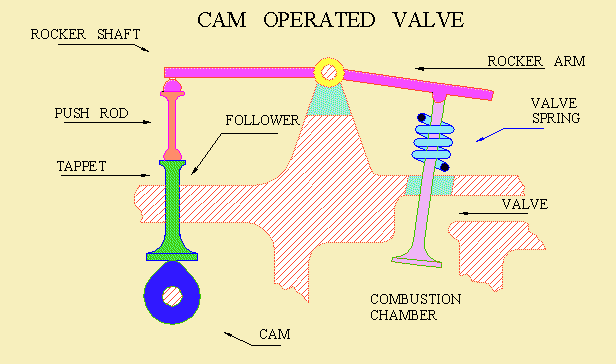

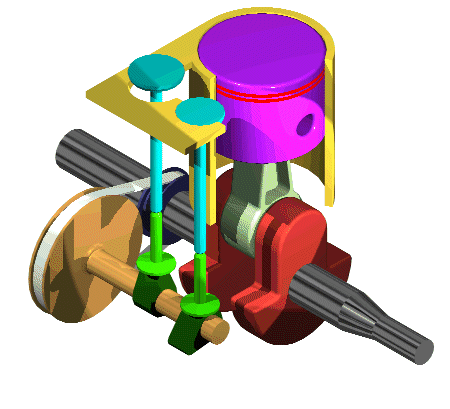

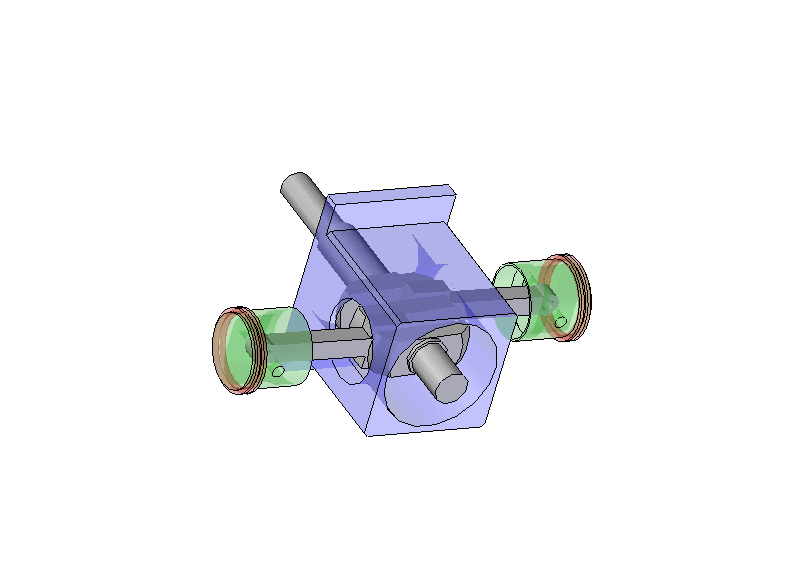

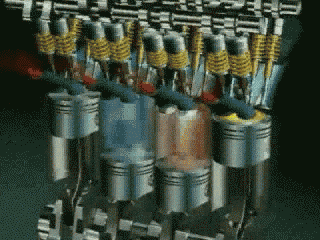

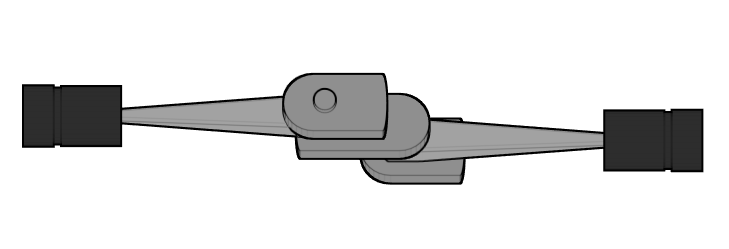

The Carnot cycle is a theoretical ideal that sets the maximum possible efficiency any heat engine can reach between two temperatures, serving as a benchmark against which real cycles are measured. Animations may also depict the camshaft, which opens and closes the valves in time with the pistons, and the conversion of the pistons' reciprocating motion into rotation of the crankshaft. Because these simulations show the timing and coordination of moving parts, they clarify why engine geometry and valve timing matter to performance and efficiency.

Frequently asked questions

What is the difference between the Otto and Diesel cycles?

The Otto cycle ignites a fuel-air mixture with a spark and models petrol engines, while the Diesel cycle compresses air until injected fuel ignites by itself, modelling diesel engines.

What are the four strokes of a four-stroke engine?

Intake, compression, power and exhaust: the piston draws in the charge, compresses it, is driven down by combustion, then pushes out the burnt gases.

Why is the Carnot cycle important?

The Carnot cycle defines the highest efficiency theoretically possible for a heat engine working between two temperatures, providing the standard against which real engine cycles are compared.
