Energy Production Animations

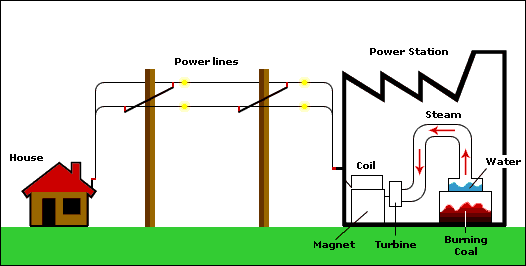

Energy production animations illustrate how power stations turn a primary source of energy into electricity. Such models are well suited to animation because a power plant is a sequence of energy conversions, and a diagram that moves can show each stage in turn — the source, the turbine, the generator, and the flow of electricity to the grid. Most large plants share the same final step, in which a spinning turbine drives a generator, so the animations often highlight what differs upstream: how each source is harnessed to turn that turbine.

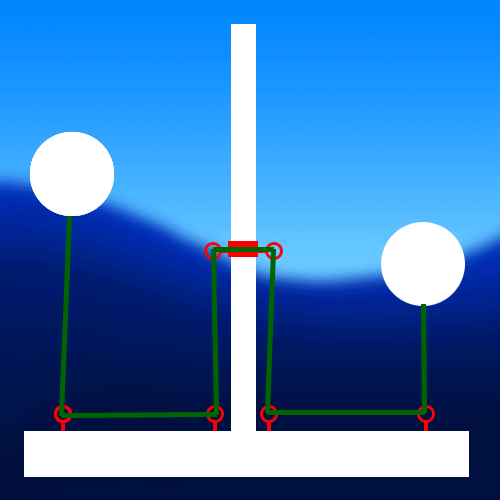

The sources represented span both conventional and renewable technologies. A hydroelectric plant animation shows water falling through a turbine, converting the potential energy of stored water into electricity. A nuclear power plant model depicts heat from a controlled nuclear reaction boiling water into steam to drive a turbine, often including the familiar cooling tower that releases waste heat as water vapor. Wave power animations show how the motion of the sea can be captured, while a solar cell animation illustrates sunlight freeing electrons in a semiconductor to produce current.

Some animations also cover newer concepts, such as the solar chimney, in which the Sun heats air under a large canopy so that the warmed air rises through a tall tower and drives turbines on its way up. By visualizing these processes, the animations make clear how sustainable and conventional sources alike feed into the same goal of generating electricity, and how the underlying physics of energy conversion applies across very different plant designs.

Frequently asked questions

What do most power plant animations have in common?

They usually end with a spinning turbine driving a generator. What differs is how each energy source — water, heat, sunlight, or waves — is used to turn that turbine.

Why do nuclear power plant animations show a cooling tower?

The cooling tower releases excess heat from the plant, often as visible water vapor, which is part of the process of condensing steam back into water.

How does a solar chimney generate power?

Sunlight heats air beneath a large canopy, and the warmed air rises through a tall central tower, driving turbines as it ascends.
