Semiconductor and Op-Amp Simulations

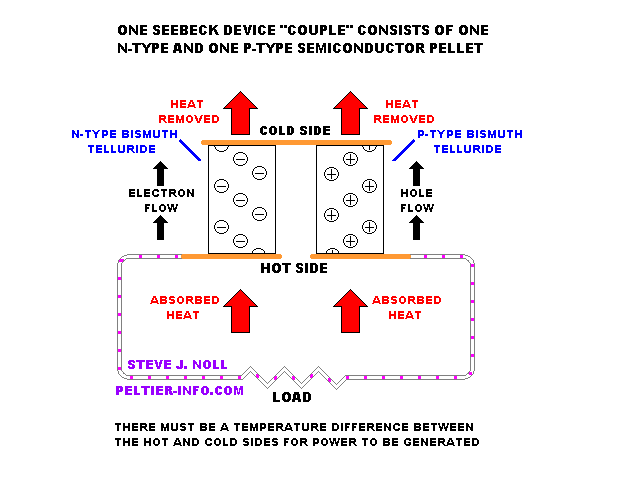

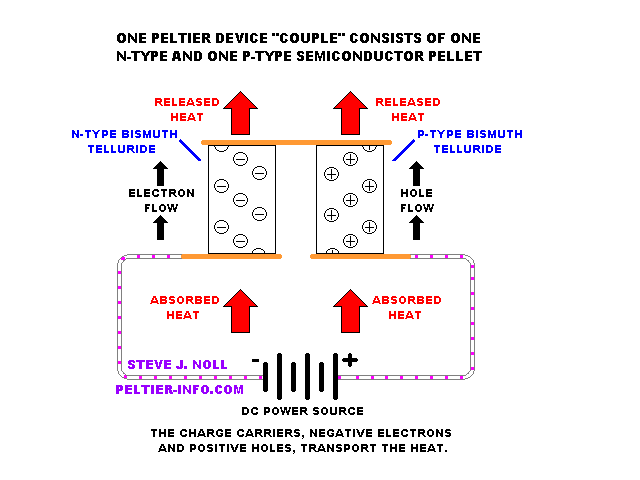

Semiconductor circuits combine transistors, field-effect devices and operational amplifiers to amplify, switch and shape signals. Simulations let a learner build these circuits virtually, change values and observe the response without wiring real hardware. This is particularly helpful for understanding how a circuit's behaviour follows from its component arrangement and bias conditions, which are not always obvious from a static schematic.

The operational amplifier is one of the most versatile building blocks. It is a high-gain differential amplifier that, when surrounded by feedback components, performs precise and predictable functions. In an inverting amplifier, a pair of resistors sets a gain equal to their ratio and reverses the signal's polarity, while a non-inverting configuration amplifies without inversion. When used without negative feedback, the same device works as a comparator, swinging its output fully high or low depending on which of its two inputs is larger.

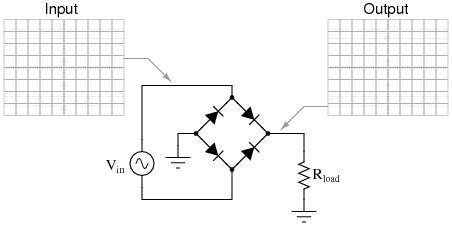

Transistor and FET circuits complement these by providing amplification and switching at the device level. Simulations of clipping circuits show how diodes or transistors limit a waveform's amplitude, while astable and Schmitt-trigger circuits demonstrate oscillation and clean level transitions. Studying passive and active parts together reveals how resistors and capacitors set time constants and gains while semiconductors provide the active gain, an interplay at the heart of analogue circuit design.

Frequently asked questions

What sets the gain of an inverting op-amp amplifier?

The ratio of the feedback resistor to the input resistor sets the gain, and the output is inverted relative to the input.

How does an op-amp act as a comparator?

Without negative feedback, its very high gain drives the output fully high or low depending on which input is at the higher voltage.

What does a clipping circuit do?

It limits the amplitude of a waveform, using diodes or transistors to prevent the signal from exceeding a chosen level.
