Magnetics in Electrical Engineering
Magnetics is the branch of physics and electrical engineering concerned with magnetic fields and their interaction with electric currents and moving charges. A magnetic field surrounds permanent magnets and any conductor carrying current. The relationship between current and the resulting field is described by Ampère's law, while the force on a charge moving through a field is given by the Lorentz force. These principles underlie the operation of motors, generators, transformers and many sensors.

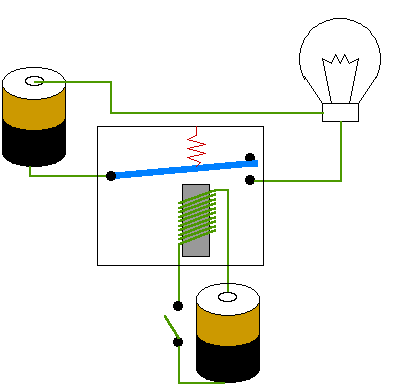

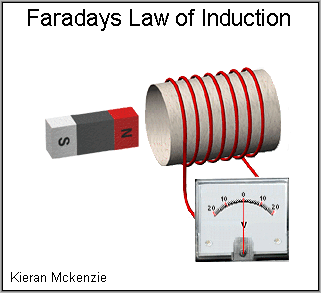

One of the most important results in the field is electromagnetic induction, summarised by Faraday's law: a changing magnetic flux through a loop induces a voltage across it. Lenz's law fixes the direction of the induced current so that it opposes the change that produced it. Together these laws explain how generators convert mechanical motion into electricity and how transformers couple energy between windings without a direct electrical connection.
Interactive applets and animations are well suited to this subject because magnetic fields, flux lines and the forces they produce are invisible and three-dimensional. Simulations let learners watch field lines form around a current-carrying wire or coil, see how a DC motor's commutator reverses current to keep the rotor turning, and observe how charges deflect under combined electric and magnetic fields. Visualising Lissajous-style relationships, dipole fields and resonant RLC behaviour helps connect the underlying equations to observable motion, which is often the hardest step when first studying electromagnetism.
Frequently asked questions
- What is electromagnetic induction?
- It is the generation of a voltage in a conductor when the magnetic flux passing through it changes, as described by Faraday's law. It is the basis of generators and transformers.
- Why use animations to study magnetics?
- Magnetic fields and forces are invisible and act in three dimensions. Animations show field lines, flux changes and forces over time, making abstract equations easier to interpret.
- How does a simple DC motor work?
- Current through a coil in a magnetic field produces a force that turns the rotor. A commutator reverses the current each half turn so the torque keeps acting in the same rotational direction.
