Digital Modulation Techniques
Digital modulation transmits discrete data by varying a carrier wave between a finite set of states, each representing one or more bits. Unlike analog modulation, where the carrier follows a continuously varying message, digital schemes switch the carrier among defined amplitude, frequency or phase values called symbols. The receiver decides which symbol was sent by comparing the received waveform with the expected possibilities, so robustness against noise depends on how far apart the symbol states are.
The basic families correspond to the carrier property being changed. Amplitude-shift keying (ASK), including simple on-off keying (OOK), switches the carrier amplitude between levels. Frequency-shift keying (FSK), in its binary form BFSK, uses two distinct frequencies for the two bit values. Phase-shift keying (PSK) encodes data in the carrier phase; quadrature phase-shift keying (QPSK) uses four phase states to carry two bits per symbol. Quadrature amplitude modulation (QAM) combines amplitude and phase variation, packing several bits into each symbol for high spectral efficiency.
These schemes are often visualised with constellation diagrams, in which each symbol is a point whose position encodes its amplitude and phase. Higher-order schemes place more points in the same space, raising the data rate but reducing the distance between symbols and so demanding a stronger signal-to-noise ratio. Animations that show symbols being transmitted, corrupted by noise and then decoded help illustrate this fundamental trade-off between throughput and reliability that governs the choice of modulation in real systems.
Frequently asked questions
- What is a symbol in digital modulation?
- A symbol is one of a finite set of carrier states a scheme can send. Each symbol carries one or more bits depending on how many distinct states are defined.
- What does a constellation diagram show?
- It plots each possible symbol as a point whose coordinates represent its amplitude and phase, making it easy to see how many bits a scheme carries and how noise may cause errors.
- Why do higher-order schemes need a better signal?
- Packing more symbols into the same signal space places them closer together, so a stronger signal relative to noise is required to tell them apart reliably.
|
|
Digital Modulation Techniques  |
|
ADSL
transmission applet
QAM, ADSL-like transmissions, basically ADSL uses
multiple carrier modulation : multiple QAM (Quadrature Amplitude modulation) |
|
Amplitude Shift Keying
Amplitude Shift Keying modulation technique |
|
Calcul du CRC 16
swf file,
en Français |
|
CDMA
Code division multiple access (CDMA) is a channel access method utilized by
various radio communication technologies |
|
CDMA Coding
This
applet demonstrates CDMA multiple access coding and allows the user to see the
process of coding and decoding in real time |
|
CDMA
transmission a Java applet simulates here multiple bit transmissions on the
same communication link. The receiver extracts one of the transmitter messages
from the transmitted signal by a correlation computation with the tranmitter
code which is assumed known |
|
Codage des signaux
binaires swf file,
en Français |
|
Digital Modulation
Techniques
Amplitude modulation, Frequency modulation, Quadrature Amplitude
Modulation, Phase Shift Modulation |
|
Frequency Shift Keying
FSK modulation, Frequency shift keying employs two different carrier
frequencies which are switched ON and OFF alternately by the mark and space
signal |
|
Huffman tree |
|

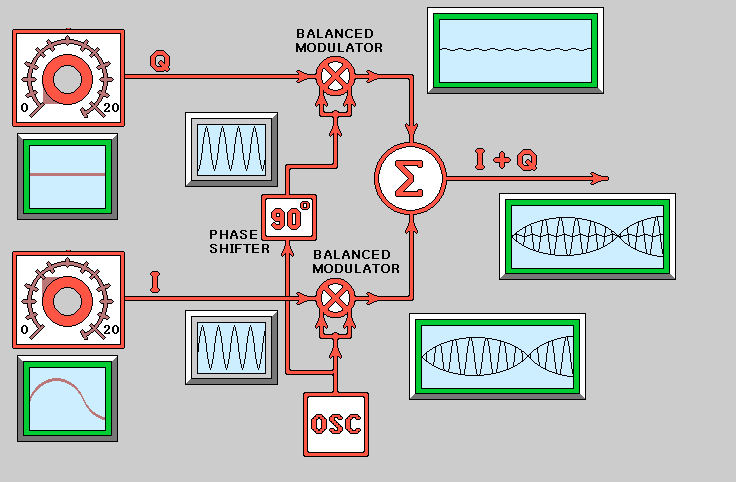

IQ
modulation |
|
IQ
modulation
QAM takes advantage of the fact that the greater the number of symbols, the
greater the efficiency of the system. Occupied bandwidth is determined,
mostly, by the symbol rate. So the more bits (the fundamental information
units) per symbol, the higher the efficiency. The number of symbols required
for a given system is 2n, where n is the number of bits per symbol.
For 16 QAM, n = 4 and there are 16 symbols–each symbol represents four bits:
0000, 0001, 0010 |
|
Modulateur à quadrature
en Français |
|
Modulation
Techniques digital modulation techniques: digital signal: AM, FM, PM |
|
OFDM modulation
The purpose of this tutorial is to give a simple introduction to Orthogonal
Frequency Division Multiplexing, binary phase shift keying (BPSK) modulation |
|
PAM, PPM, PDM, PWM Pulse Amplitude Modulation (PAM), Pulse Position
Modulation (PPM), Pulse Duration Modulation (PDM), Pulse Width Modulation (PWM),
PCM |
|
PAM
PAM: pulse amplitude modulation |
|
PCM
Converting Analog Signals to Digital Signals using Pulse Code Modulation |
|
Phase Shift Keying
(PSK)
Phase Shift Keying (PSK), In PSK, the mark and space signals are represented by 180º phase shift and zero phase shift respectively |
|
Pulse Code
Modulation Pulse Code Modulation, PCM |
|
Pulse position
modulation a PPM signal and how it changes with amplitude and frequency of
the modulating signal |
|
Pulse width
modulation this form of modulation is often used in control applications as
the average value is proportional to the pulse width |
|
Pulse
Width Modulation Principle This Demonstration generates a graphical
representation of pulse width modulation (PWM) used for variable frequency AC
motor drives (VFDs). The carrier frequency signal is illustrated in blue while
the reference signal (sine wave) is green |
|
Quadrature Amplitude
Modulation combinations of AM and PSM are used in Quadrature Amplitude
Modulation |
|
Signal
Processing for Cellular Communication Systems Data Flow Diagram, Amplitude
Shift Keying, Frequency Shift Keying, Phase Shift Keying, Quadrature Amplitude
Modulation, Flat fading, Multi-path fading |
|
Time Division
Multiplexing (TDM) Time Division Multiplexing (TDM) |
|
Time Division
Multiplexing (TDM) Time Division Multiplexing (TDM), Synchronous Time
Division Multiplexing |
|
Time Division Multiplexing |
|
Wavelet
compression |
|
|
